Telescopic Crane Grove GMK 5175

Telescopic Crane Grove GMK 5175 Specification

Tire Size
445/95R25

Outrigger Spread
7.8 m

Weight
60,000 kg

Wind Speed Limit for Operation
14 m/s

Model
GMK 5175

Carrier Length
13.6m

Type
Telescopic Crane

Main Winch Line Pull
85 kN

Cabin Type
Ergonomic Operator Cabin

Number of Axles
5

Turning Radius
11 m

Suspension Type
Hydropneumatic

Boom Length
13.2m - 60m

Max Travel Speed
85 km/h

Counterweight
52 t

Hydraulic System Pressure
350 bar

Max Lifting Capacity
175 Ton

Fuel Tank Capacity
500 L

Emission Standard
Euromot III

Jib Length
11m - 26m

Engine Power
405 kW

Overall Height
4m

Operating Temperature Range
-10°C to +45°C

Overall Width
3m

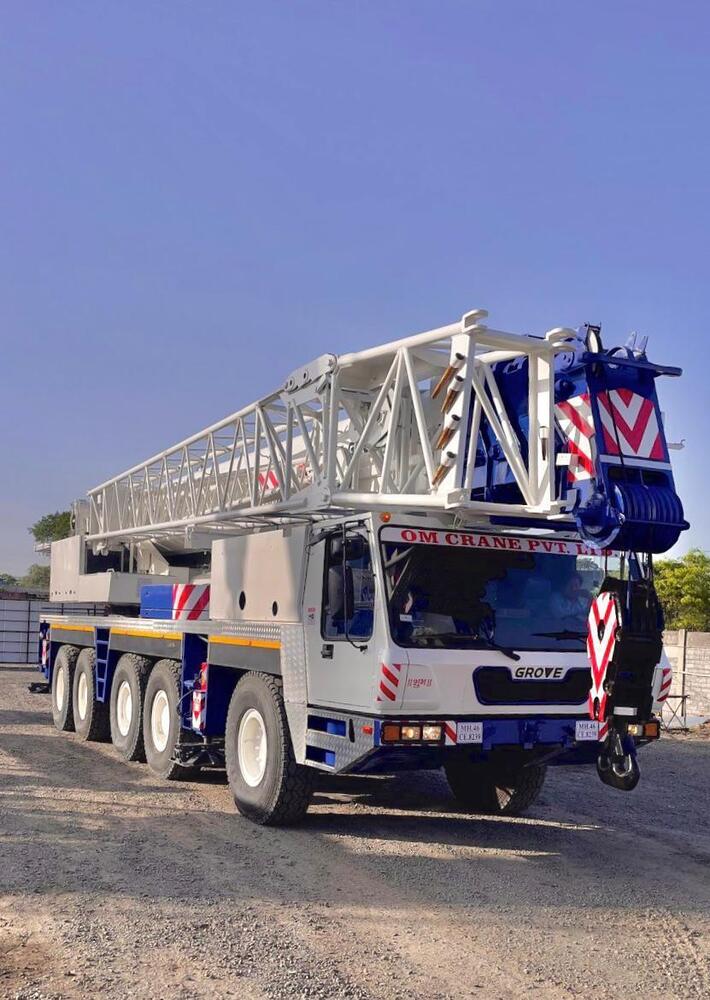

About Telescopic Crane Grove GMK 5175

175Ton All Terrain Crane available for Rental

Details

Type : All Terrain Crane

Make : Grove

Model : GMK 5175

Cap. : 175 Ton

Boom : 50 Mtr

Jib : 18 Mtr

Loc. : Navi Mumbai, MH

Crane is in excellent condition with all safety features intact.

Outstanding Lifting Capability

With a main boom stretching up to 60 meters and a maximum lifting capacity of 175 tons, the GMK 5175 meets the most demanding lifting needs for large-scale construction and industrial projects. Supplemented by a counterweight of 52 tons and a main winch line pull of 85 kN, this crane delivers superior performance and high reliability on site.

Advanced Mobility & Stability

Featuring a turning radius of 11 meters, hydropneumatic suspension, and a wide outrigger spread of 7.8 meters, the Grove GMK 5175 offers exceptional stability and maneuverability, even in constrained workspaces. The 445/95R25 tires and an overall width of just 3 meters further enhance its agility and safety in operation.

Operator Comfort & Efficient Control

The GMK 5175 boasts an ergonomic operator cabin and a hydraulics system operating at 350 bar, optimizing operator comfort and precision. Compliance with Euromot III emission standards ensures eco-friendly operation, while integrated control systems enhance productivity throughout varied temperature conditions.

FAQ's of Telescopic Crane Grove GMK 5175:

Q: How can the Grove GMK 5175 crane be transported and installed on-site?

A: The GMK 5175, measuring 13.6 m in carrier length and weighing 60,000 kg, can be transported via flatbed trailer. Upon arrival, its outriggers are deployed to a 7.8 m spread for stability. The telescopic boom can be extended and the counterweight attached on-site as needed for specific lifting tasks.

Q: What are the primary applications of the Grove GMK 5175 telescopic crane?

A: This crane is well-suited for heavy construction, industrial assembly, infrastructure development, and wind energy projects. Its 175-ton lifting capacity, variable boom and jib lengths, and strong main winch make it adaptable for a variety of large-scale lifting duties.

Q: When should the crane's operations be limited due to environmental conditions?

A: The GMK 5175 should not be operated in wind speeds exceeding 14 m/s. Additionally, its optimal operating temperature range is between -10C and +45C. For safety, always monitor environmental conditions and adhere to these operational limits.

Q: Where is the Grove GMK 5175 manufactured and who benefits from its features?

A: The Grove GMK 5175 is manufactured in Germany and is widely exported, imported, and supplied globally by service providers and traders. Contractors, infrastructure developers, and construction firms benefit from its high performance, reliability, and operational safety.

Q: What is the process for controlling and operating the GMK 5175 crane efficiently?

A: Operators manage crane functions from an ergonomic cabin, utilizing advanced control systems linked to the hydraulic system rated at 350 bar. Routine pre-operation checks, adherence to weight limits, and regular equipment maintenance are essential for safe and efficient operations.

Q: How does the GMK 5175 ensure safety and environmental compliance?

A: The crane features advanced hydraulic and outrigging systems for stability, meets Euromot III emission standards for reduced environmental impact, and boasts an ergonomic cabin that reduces operator fatigue-together supporting safe, sustainable jobsite practices.

Q: What are the key benefits of using this telescopic crane for large projects?

A: The GMK 5175 delivers remarkable lifting power, operational versatility due to its expandable boom and jib, efficient transportability, and low emissions. These qualities minimize project timelines and costs while maximizing site safety and work quality.
